Description

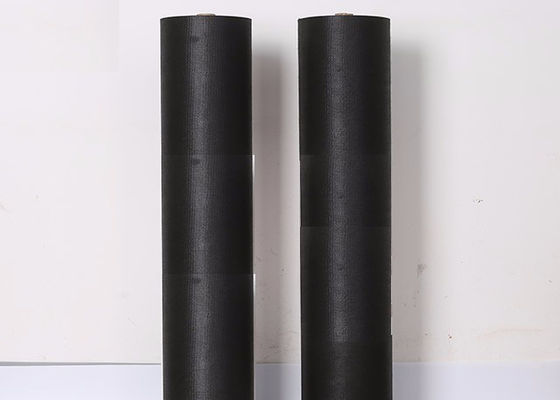

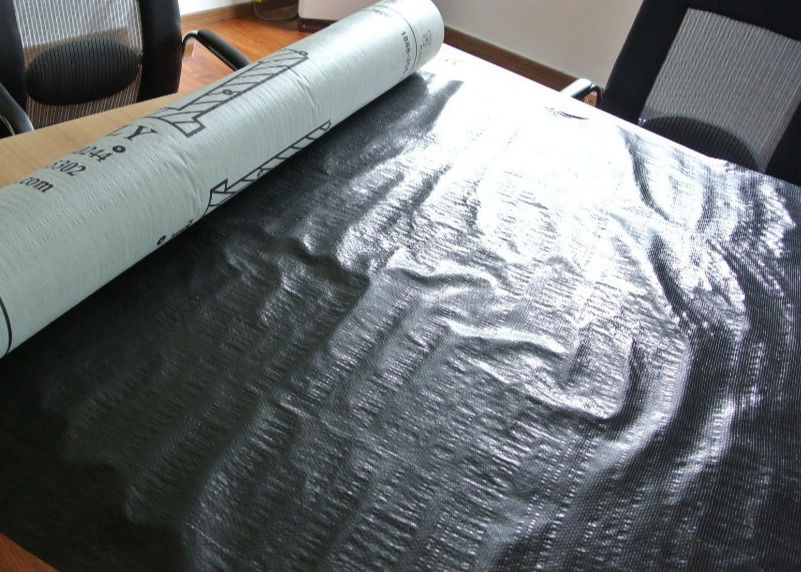

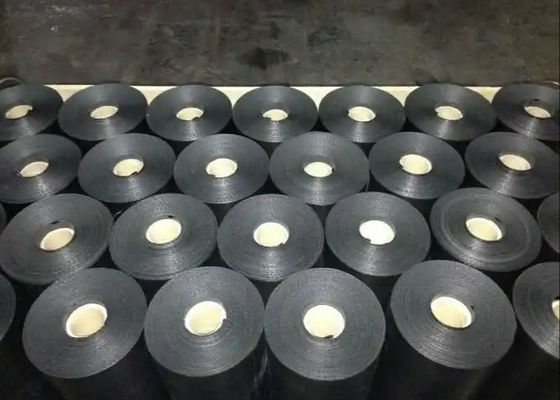

ASTM Standard High Quality synthetic roofing underlayment
Synthetic underlayment is a type of roofing material that is used as a secondary barrier against moisture penetration on roofs. It is typically made from polypropylene or polyethylene material. Synthetic underlayment is designed to be lightweight, flexible, and highly tear-resistant, making it easier to work with during roof installation.
Specification
| Technical Data |
| Test & Standard |
Typical Value |
Specification |
Data |
| CLASS a Fire ASTM E108 |
PASS |
Length per roll |
250'/76.2m |
| Nail Sealability Modified ASTM D1970 |
PASS |
Width per roll |
48''/1.22m |
| Water Transmission ASTM E96 |
No Dripping |
Weigth per roll |
23 lbs/10.2 kgs |
| Water Transmission ASTM D4869 |
PASS |
Roll size |
10sq/93m² |
| Tear Strength ASTM D4533 |
MD 15 lbs/CD 17 lbs |
Roll per pallet |
49 |
| Tensile Strength ASTM D751 |
MD 80 lbs/CD 65 lbs |
Pallet weight |
Approx. 1200 lbs |
| Elongation ASTM D751 |
MD 19%/CD 18% |
|
| Weight per Square ASTM D5261 |
2.3 lbs/1.02 kgs |
| Exposed Color |
Light grey |
Surface Construction |
Coated textured poly |
Applicable Standards & Approvals
ASTM D226
ASTM D4869
ASTM E108/UL 790, Class A Fire Resistance
ICC-ES AC188
ICC-ESR 3229
High Traction, Safe-Step Technology
Wrinkle Free Surface, Even When Wet
Won’t Tear or Rip Like Organic Felts
Cooler Working Surface
Enhanced UV-180 Day Exposure
Easy to use Cap-Nail Pattern
Features:
Advanced Engineering
Wuxi Sentai Roofing Underlayment with its advanced engineering is highly recommended for mechanically attached, coated woven synthetic roofing underlayment for sloped roofs. Wuxi Sentai is specifically manufactured to replace the #15 Felt and #30 Felt.
Cooler Working Surface
Wuxi Sentai unique gray top layer which provides for a cooler working surface can be used under primary roofing materials to replace #15 Felt and #30 Felt. Wuxi Sentai high traction walking surface permits easier steep slope walk-ability, even during high condensation or moisture on the surface.
High anti skid bottom
Wuxi Sentai anti-skid bottom surface made with advanced polymers helps keep the underlayment intact and prevents the fabric from tearing while it is being fastened avoiding any leakages through the underlayment layer.
Exceptional Strength
Wuxi Sentai is 25 times stronger than #15 Felt and #30 Felt and 4x lighter than #15 Felt and #30 Felt. With a 7mil thickness, a 1000 square feet roll weighs only 23 lbs.! This super low weight combined with 48" width and 250 ft. run length means big savings in time and labor - over 30% faster to install than felt!. These unique design features, when coupled with Wuxi Sentai’s exceptional light weight and exceptional tear strength, allows the contractor to easily carry the roll up and down the ladder. Fewer laps, cuts, and roll handling means you can do more jobs in less time resulting in huge savings for you, the roofing contractor.
FAQ
Q: Can I have samples?
A: Yes, Please contact the sales manager to get the samples.
Q: Can I have our own Logo and design?
A: Yes, OEM and ODM are warmly wecomed.We have three printing machines for your logo printing(1-8 Colors).
Q: What's the MOQ?
A: Our MOQ is 1,000m2 (1-2 Pallets)
Q: What's the quantity of membranes fit in the containers?
A: About 2016 rolls for a 100gsm/40HQ
About 1764 rolls for a 110gsm/40HQ
About 1512 rolls for a 140gsm/40HQ
