Name: Single Double Sided Woven Fabric Reflective Foil Foam Insulation Thermal Building Materials
Brand: Sentai
SKU: Sentai
Rating: 4.9 (195 reviews)

Home Products Thermal Aluminum Foil Foam Insulation

Single Double Sided Woven Fabric Reflective Foil Foam Insulation Thermal Building Materials

Product Details:

Place of Origin:	China
Brand Name:	Sentai
Certification:	CE / ISO

Payment & Shipping Terms:

Minimum Order Quantity:	3000 Square Meters
Delivery Time:	7-10 days
Payment Terms:	L/C, T/T
Supply Ability:	100000sqm / Day

Contact Now

Detailed Product Description

Diameter:	4-30mm	Usage:	Exterior Tiles
Material:	Reflective Foam Foil	Refractoriness:	Heat / Sound Inslation
Structure:	Customized	Specification:	1.2 / 1.5m In Width
Highlight:	30mm XPE Foam Insulation , Reflective XPE Foam Insulation , 4mm thermal building materials

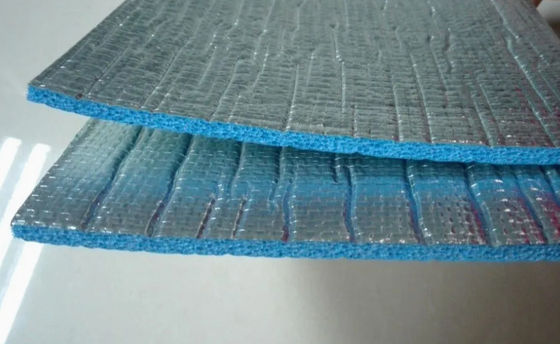

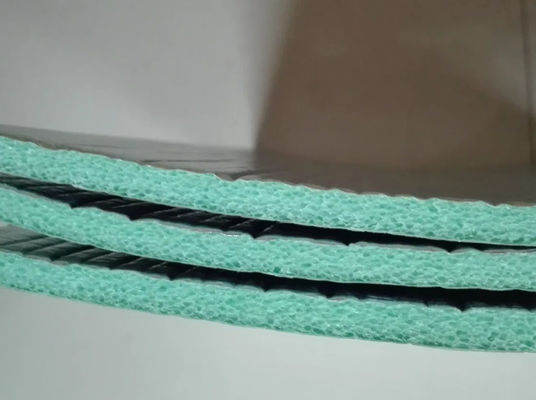

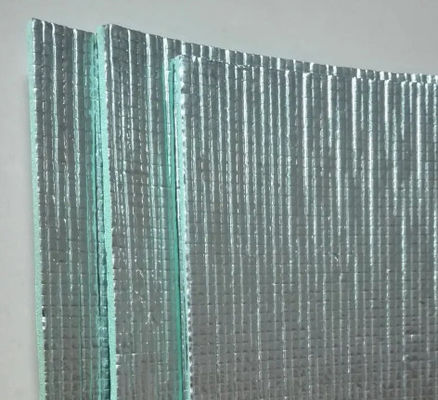

Single or Double Sided Woven Fabric Reflective Foil Foam Insulation Materials Thermal Building Materials

Besides widely used in thermal insulation of roof building, with good thermal insulation performance.

it can also be made into a heat preservation cover with good heat sealing performance.

1) 1 layer of polyethylene EPE / XPE foam that is sandwiched between two aluminum foils, low emissivity surfaces.
2) The polyethylene encapsulated air bubbles serve as an effective thermal break as well as a vapor barrier while the two outer surfaces reflect up to 97% of all radiant energy.

Typical Physical Properties
Thickness	4-8mm
Length	5m, 10m, 25m, 40m etc customized
Width	1.2m / 1.5m
Sqms/Roll	6 sqm / 12sqm / 30sqm / 48sqm
Reflectivity	97%
Emissivity	0.03
Water proof	100%
Fire proof	Class A
Application Temperature	-50ºC~80ºC
MOQ	3000 Square Meters

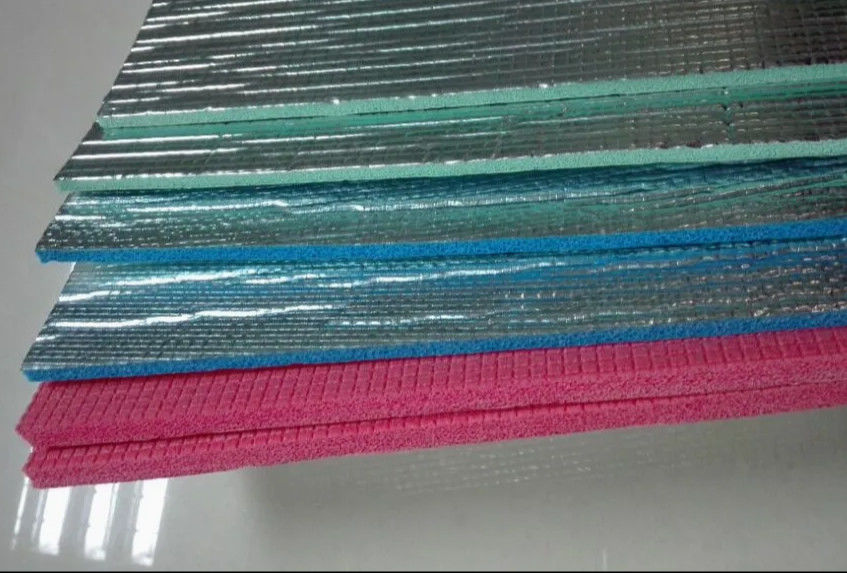

Types / Structures Optionals
1	MPET + EPE / XPE foam
2	MPET + EPE / XPE foam + MPET
3	Alu + EPE / XPE foam
4	Alu + EPE / XPE foam + Alu
5	Alu + woven + EPE / XPE foam + Alu
6	Alu + woven + EPE / XPE foam + woven + Alu
7	Alu + woven + EPE / XPE foam + Alu + Anti-glare coating
8	Alu + (single / double) PE bubble + EPE / XPE foam+ woven + Alu + Anti-glare coating

Applications

* Heat Insulation: Building Thermal Insulation Material to reduce summer heat and keep warm in winter.
* Covers: It can be heat sealed to be roof cover to reflect heat radiation and seal airtight.

* Wrapping: Protective coating of ventilating pipe, HVAC Duct & Pipe or To make Bubble mailer, Bag

Package: It can be cut into 5-100m per roll according to client's requirements, and then packed with poly bag.

* A 20 container can load about metal roofing insulation
* A 40HQ can load about 22 tons metal roofing insulation

Delivery: Storage products are prepaid within 5-7 days and shipped,

Custom products are generally prepaid within 7 days.

For more details, please contact us!

Single or Double Sided Woven Fabric Reflective Foil Foam Insulation Materials Thermal Building Materials
